Spline Chart [Deprecated]

Create smooth line charts

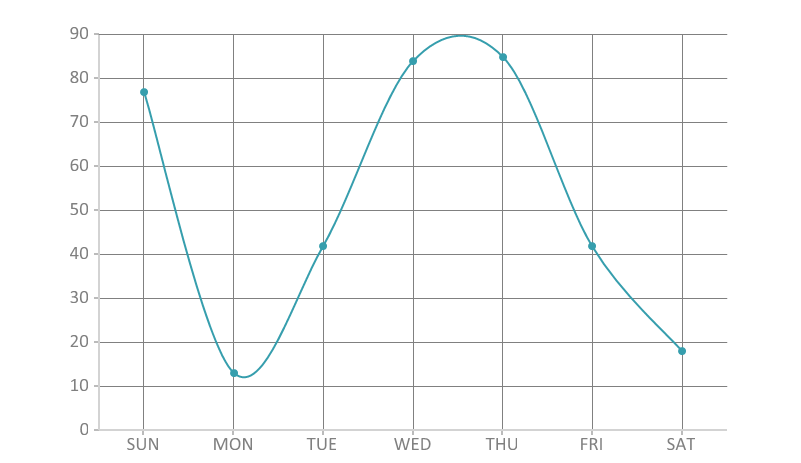

Easily connect continuous data points with spline chart which then creates smooth curves.

How to display Spline chart using Bunifu Dataviz

Simply locate Bunifu Dataviz control in your toolbox and drag it to the location on your form where you would like to display it.

We will use button click event handler to display our chart called render_spline

C# code

private void render_spline_Click(object sender, EventArgs e)
{
    var r = new Random();
    var canvas = new Bunifu.Dataviz.WinForms.BunifuDatavizBasic.Canvas();
    var datapoint = new Bunifu.Dataviz.WinForms.BunifuDatavizBasic.DataPoint(Bunifu.Dataviz.WinForms.BunifuDatavizBasic._type.Bunifu_spline);
    datapoint.addLabely("SUN", r.Next(0, 100).ToString());
    datapoint.addLabely("MON", r.Next(0, 100).ToString());
    datapoint.addLabely("TUE", r.Next(0, 100).ToString());
    datapoint.addLabely("WED", r.Next(0, 100).ToString());
    datapoint.addLabely("THU", r.Next(0, 100).ToString());
    datapoint.addLabely("FRI", r.Next(0, 100).ToString());
    datapoint.addLabely("SAT", r.Next(0, 100).ToString());
    // Add data sets to canvas
    canvas.addData(datapoint);
    //render canvas
    bunifuDataViz1.Render(canvas);
}

VB.NET code

 Private Sub render()

    Dim canvas As Bunifu.Dataviz.WinForms.BunifuDatavizBasic.Canvas = New Bunifu.Dataviz.WinForms.BunifuDatavizBasic.Canvas()

    Dim datapoint1 As Bunifu.Dataviz.WinForms.BunifuDatavizBasic.DataPoint

    bunifuDataViz1.colorSet.Add(Color.Black)

    datapoint1 = New Bunifu.Dataviz.WinForms.BunifuDatavizBasic.DataPoint(Bunifu.Dataviz.WinForms.BunifuDatavizBasic._type.Bunifu_spline)

    Dim random As Random = New Random()
    datapoint1.addLabely("MON", random.[Next](0, 50).ToString())
    datapoint1.addLabely("TUE", random.[Next](0, 50).ToString())
    datapoint1.addLabely("WED", random.[Next](0, 50).ToString())
    datapoint1.addLabely("THU", random.[Next](0, 50).ToString())
    datapoint1.addLabely("FRI", random.[Next](0, 50).ToString())
    datapoint1.addLabely("SAT", random.[Next](0, 50).ToString())
    datapoint1.addLabely("SUN", random.[Next](0, 50).ToString())
    canvas.addData(datapoint1)
    bunifuDataViz1.Renderint2))

End Sub

In order to display spline chart we need the following controls:

  • Bunifu Data Viz - This is the container for our chart

  • Bunifu Canvas - This is the middle layer between the data viz (container) and the dataset

  • Bunifu Data Point - This will contain the data that we want to represent as pairs of X and Y coordinates

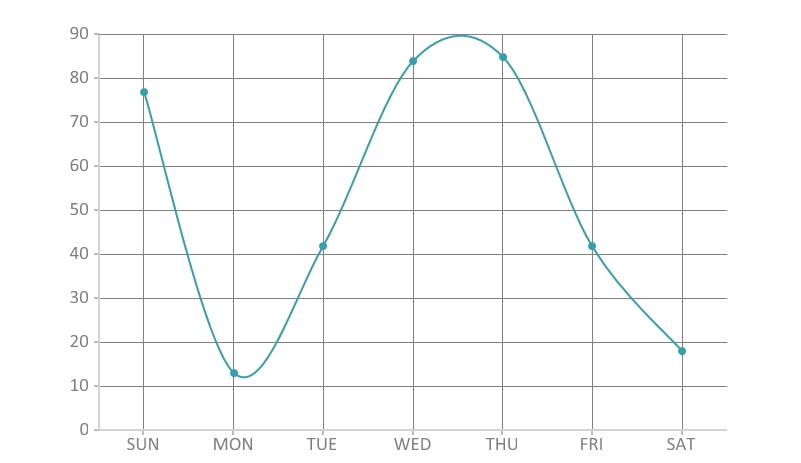

On running the code you should see something like this:

That's it!

We hope Bunifu Dataviz will help you bring out the best data visualization for your data in your application.

Should you have feedback or suggestions please send us via chat on the bottom right corner of the screen.
