Stacked Column 100 Chart [Deprecated]

Stacked column 100 chart is derived from stacked column chart. The difference is that the sum of data series add up to 100%.

Stacked column 100 chart is useful when showing part-to-whole proportions over a period of time.

How to display stacked bar chart using Bunifu Dataviz

Simply locate Bunifu Dataviz control in your toolbox and drag it to the location on your form where you would like to display it.

We will use button click event handler to display our chart called render_stacked_column_100

C# code

C#

private void render()
{
    var canvas = new Bunifu.Dataviz.WinForms.BunifuDatavizAdvanced.Canvas();
    var datapoint = new Bunifu.Dataviz.WinForms.BunifuDatavizAdvanced.DataPoint(Bunifu.Dataviz.WinForms.BunifuDatavizAdvanced._type.Bunifu_stackedColumn100);

    datapoint.addxy("new Date (2002,11,10)", new JArray(16.23, 17.99).ToString());
    datapoint.addxy("new Date (2002, 11, 9)", new JArray(15.95, 19.25).ToString());
    datapoint.addxy("new Date (2002, 11, 8)", new JArray(11.30, 16.88).ToString());
    datapoint.addxy("new Date (2002, 11, 7)", new JArray(13.29, 14.28).ToString());
    datapoint.addxy("new Date (2002, 11, 6)", new JArray(15.23, 16.45).ToString());
    datapoint.addxy("new Date (2002, 11, 5)", new JArray(13.70, 16.50).ToString());
    datapoint.addxy("new Date (2002, 11, 4)", new JArray(17.50, 19.00).ToString());
    datapoint.addxy("new Date (2002, 11, 3)", new JArray(19.50, 20.85).ToString());
    datapoint.addxy("new Date (2002, 11, 2)", new JArray(20.07, 21.44).ToString());
    datapoint.addxy("new Date (2002, 11, 1)", new JArray(25.00, 26.70).ToString());

    canvas.addData(datapoint);
    bunifuDataViz1.Render(canvas);
}

VB.NET

Private Sub render()
    Dim canvas = New Bunifu.Dataviz.WinForms.BunifuDatavizAdvanced.Canvas()
    Dim datapoint = New Bunifu.Dataviz.WinForms.BunifuDatavizAdvanced.DataPoint(Bunifu.Dataviz.WinForms.BunifuDatavizAdvanced._type.Bunifu_stackedColumn100)

    datapoint.addxy("new Date (2002,11,10)", New JArray(16.23, 17.99).ToString())
    datapoint.addxy("new Date (2002, 11, 9)", New JArray(15.95, 19.25).ToString())
    datapoint.addxy("new Date (2002, 11, 8)", New JArray(11.30, 16.88).ToString())
    datapoint.addxy("new Date (2002, 11, 7)", New JArray(13.29, 14.28).ToString())
    datapoint.addxy("new Date (2002, 11, 6)", New JArray(15.23, 16.45).ToString())
    datapoint.addxy("new Date (2002, 11, 5)", New JArray(13.70, 16.50).ToString())
    datapoint.addxy("new Date (2002, 11, 4)", New JArray(17.50, 19.00).ToString())
    datapoint.addxy("new Date (2002, 11, 3)", New JArray(19.50, 20.85).ToString())
    datapoint.addxy("new Date (2002, 11, 2)", New JArray(20.07, 21.44).ToString())
    datapoint.addxy("new Date (2002, 11, 1)", New JArray(25.00, 26.70).ToString())

    canvas.addData(datapoint)
    bunifuDataViz1.Render(canvas)

End Sub

In order to display a Bunifu Stacked Column 100 we need the following controls:

• Bunifu Data Viz - This is the container for our chart

• Bunifu Canvas - This is the layer between the data viz (container) and the dataset

• Bunifu Data Point - This contains the data that we want to represent, as pairs of X and Y coordinates

Bunifu Stacked Column 100 simply works by creating 2 data point objects, one for the “low” set of points and one for the “high” set of points. The control will know automatically to adjust the width of the lines to match the specified data points and also to fill the entire width of the graph.

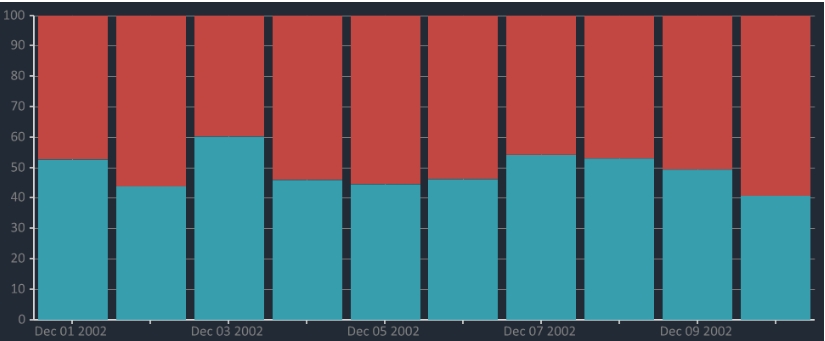

On running the code you should see something like this:

That's it!

We hope Bunifu Dataviz will help you bring out the best data visualization for your data in your application.
